The TPF Intelligent Compaction study (from 2008 to 2011) existed as a part of the US FHWA and Transportation Pooled Fund (TPF) Project TPF-5(128). Accelerated Implementation of Intelligent Compaction Technology for Embankment Subgrade Soils, Aggregate Base and Asphalt Pavement Material. The project includes 12 participating state Department of Transportations (DOTs): Georgia, Indiana, Kansas, Maryland, Minnesota, Mississippi, North Dakota, New York, Pennsylvania, Texas, Virginia, and Wisconsin.
The TPF Intelligent Compaction Project was intended to:
- Accelerate the development of IC QC/QA specifications for subgrade soils, aggregate base, and HMA pavement materials. The focus of the technology will be to provide a reliable method to capture the maximum potential value added from current IC technology and currently used/available QC/QA field-testing equipment (dynamic cone, FWD, Plate Load Tests, Nuclear Density, Moisture, temperature, cores, etc.).
- Develop an experienced and knowledgeable IC expertise base within the participating State DOTs.
- Identify and prioritize needed improvements to, and research for, IC equipment and QC/QA field-testing equipment. Prioritization will be based on the potential for: simplifying IC usage, achieving greater IC value (cost benefit), and improved accuracy.
TWG Team Structure
TWG Meeting
2010 Demo Projects
Wisconsin
Project Description

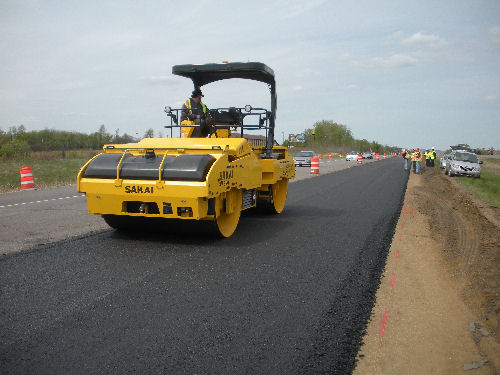

This project is a HMA overlay project on rubblized PCC located in Mosinee, WI at the junction of IH 39 and 153.
Date: Monday, May 10, 2010 – Thursday, May 13, 2010
Presentation
- FHWA/TPF Intelligent Compaction Project – by Dr. George Chang (Transtec Group)
- Asphalt Intelligent Compaction – by Bob Horan (Asphalt Institute)
- Sakai Intelligent Compaction System – by Todd Mansell (Sakai America)
- WisDOT HMA IC Demo and Prelim Results – by Dr. George Chang (Transtec Group)
- Trimble GPS System – by Adam Patrow (Fabco/Trimble)
- TopCon GPS System – by Brian Lingobardo (TopCon) and Tom Walrath (Position Solutions)
Material Types
The material type is FHWA/TPF Type IV HMA material.
Rollers
- Sakai double-drum IC rollers – SW880 and SW 990
- Trimble GPS (on SW880)
- TopCon GPS (on SW990)
Objectives
- Demonstrate IC technology to DOT personnel and contractors,
- Evaluate the benefits and effectiveness of IC Rollers,
- Assist DOT in the development of IC quality control (QC) specifications, and
- Identify and prioritize needed improvements and further research for IC equipment.
Meetings
- 20100405 Meeting: draft minutes, presentation.
Documents
- WisDOT special provision for HMA IC (v2a, Feb. 8, 2010)
- WisDOT Field Sheets for HMA IC (v5a, May 7, 2010)
- WisDOT HMA IC Report (draft, v1.04b, June 14, 2010)
Photos and Videos
Pennsylvania
Project Description
- This project is an HMA overlay project that the location is centered at the interchange of SR 53 and SR 219 in Summerhill, PA, 15958.
Date
Monday, September 20, 2010 – Thursday, September 23, 2010
Open House
- 9AM to noon, Thursday, Sept. 23, 2010
- (New Enterprise Stone & Lime Office, 3912 Brumbaugh road, New Enterprise, PA 16664) – 1 hour from the job site
Presentation
- FHWA/TPF IC Project and Recent Findings, by Dr. George Chang, P.E., Transtec Group, PI, FHWA/TPF IC project
- IC for HMA, by Bob Horan, P.E., Asphalt Institute, Facilitator, FHWA/TPF IC project
- Kessler Field Test Equipment, by Larry Aicken, Kessler Soils Engineering
- Volvo IACA, by Chad Fluent, Volvo
- Trimble GPS for IC, by Pete Kaz, Trimble
- Prelim Findings from the PA HMA IC Demonstration, by Dr. George Chang, P.E., Transtec Group, PI, FHWA/TPF IC project
Material Types
FHWA/TPF Type IV HMA materials.
Rollers
- Sakai double-drum IC roller
- Volvo double-drum IACA roller
Objectives
- Demonstrate IC technology to DOT personnel, contractors, etc.
- Evaluate the benefits and effectiveness of IC Rollers
- Assist DOT in the development of IC quality control (QC) specifications
- Identify and prioritize needed improvements and further research for IC equipment
Meetings
- Web Meeting (Aug. 31, 2010): meeting minutes and presentation.
- Teleconference (Sept. 16, 2010): a briefing to determine paving schedule and exact locations for demonstration. Meeting minutes are included in the field summary sheets, version 2.
Documents
- PennDOT special provision for HMA IC (v1, Aug. 25, 2010)
- Field Summary Sheets (v3, Sept. 20, 2010)
- Final report (v1.03, draft, Oct. 22, 2010. 19 MB)
Photos and Videos
North Dakota
Project Description
- This project is located on Highway 12 in southwest ND, 9 miles from Montana State line through city of Marmarth to Bowman County line.
Date
Monday, August 9, 2010 – Thursday, August 12, 2010
Important Notices
- Roller shipping – Shipping address (Staging area of this project, 1 miles west of Marmarth), Arrive on (Aug. 6 – tentatively), Contacts: Keith Reiss of Northern Improvement: (701) 225-5197.
Presentation
- FHWA/TPF Intelligent Compaction Study and Findings, George Chang (Transtec Group)
- Soils/Subbase IC and ND IC Prelim Results, David White (ISU)
- Trimble GPS System, Brian Visser (Butler Machinery)
- Caterpillar IC Systems, Candace Young (Caterpillar)
Material Types
The material type is FHWA/TPF Type I (non-cohesive subgrade soils), II (cohesive subgrade soils), and III (granular subbase) materials.
Rollers
Caterpillar CS56 with a padfoot shell kit and Caterpillar CS563E.
Objectives
- Demonstrate IC technology to DOT personnel and contractors
- Evaluate the benefits and effectiveness of IC Rollers
- Assist DOT in the development of IC quality control (QC) specifications
- Identify and prioritize needed improvements and further research for IC equipment
Meetings
- Project meeting – July 7, 2010. Meeting minutes and meeting presentation.
Documents
- NDDOT soils IC Summary Field Sheets (v3b, Aug 6, 2010)
- NDDOT special provision for soils IC (v2, final version, July 16, 2010)
- NDDOT Soils IC Report (final, 22MB, Nov. 19, 2010)
Photos and Videos
Indiana
Project Description
- The project is SR-25 Segment 1A (INDOT contract IB-30837) which is the new highway alignment extending from I-65 to CR750E north of Buck Creek, West Lafayette, IN.
Date
Tuesday, August 17, 2010 – Thursday, August 19, 2010
Presentation
- FHWA/TPF Intelligent Compaction Study and Findings, George Chang (Transtec Group)
- Soils/Subbase IC and ND IC Prelim Results, David White (ISU)
- Trimble GPS and IC System, Creg Adkins (SITEC)
- Caterpillar IC Systems, Candace Young (Caterpillar)
Material Types
The material types include both cohesive and granular soils.
Rollers
- A Caterpillar CS56 single smooth drum IC roller with a padfoot shell kit
- A Caterpillar CS563E single smooth drum IC roller
Objectives
- Demonstrate IC technology to DOT personnel, contractors, etc.
- Evaluate the benefits and effectiveness of IC Rollers
- Assist DOT in the development of IC quality control (QC) specifications
- Identify and prioritize needed improvements and further research for IC equipment
Meetings
- Project meeting: July 16, 2010. Meeting minutes (revised, July 26) and presentation.
Documents
- INDOT special provision for Soils IC (v1, April 1, 2010)
- INDOT Soils IC Field Summary Sheets (v2, Aug. 6, 2010)
- INDOT Soils IC Report (draft, v7, April, 2011)
Photos and Videos
Virginia
Project Description
- The candidate site is a HMA overlay project at I-66 west of DC around milepost 23.
Date
Monday, September 27, 2010 – Thursday, September 30, 2010
Presentation
- FHWA/TPF IC Project and Recent Findings, by Dr. George Chang, P.E., Transtec Group, PI, FHWA/TPF IC project
- IC for HMA, by Bob Horan, P.E., Asphalt Institute, Facilitator, FHWA/TPF IC project
- Kessler Field Test Equipment, by Larry Aicken, Kessler Soils Engineering
- Volvo IACA, by Chad Fluent, Volvo

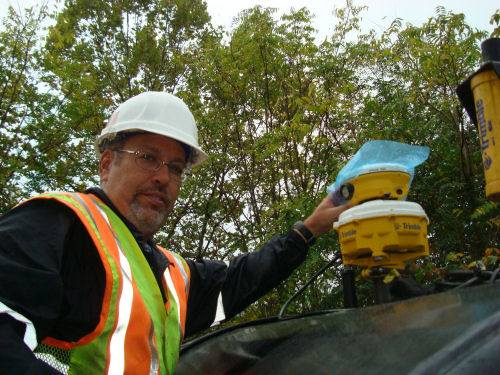

- Trimble GPS for IC, by Mike Windsor, Keystone Precision Instrument
- Prelim Findings from the VA HMA IC Demonstration, by Dr. George Chang, P.E., Transtec Group, PI, FHWA/TPF IC project
Material Types
The material type is FHWA/TPF Type IV HMA.
Rollers
- Sakai double drum IC roller
- Volvo double drum IACA roller
Objectives
- Demonstrate IC technology to DOT personnel, contractors, etc.
- Evaluate the benefits and effectiveness of IC Rollers
- Assist DOT in the development of IC quality control (QC) specifications for HMA pavement materials
- Identify and prioritize needed improvements and further research for IC equipment
Documents
- VDOT special provision for HMA IC (v1, Feb. 17, 2010)
- Field Summary Sheets (v5, Sept. 17, 2010)
- Final report (draft, 3MB, v 1.04, Jan. 4, 2011)
Photos and Videos
More Projects
MoDOT IC-IR Projects
The Missouri Department of Transportation (MoDOT) executed a year-long project throughout 2017 to demonstrate the use of intelligent compaction (IC), infrared scanning (IR), and Veta software to improve pavement construction operations.
FHWA IC and In-Place HMA Density Projects
This project, funded by US FHWA from 2012 to 2014, intended to pinpoint the relationship between in-place HMA density and IC machine operations’ settings and measurements.
TPF Intelligent Compaction Project
The TPF Intelligent Compaction study (from 2008 to 2011) existed as a part of the US FHWA and Transportation Pooled Fund (TPF) Project TPF-5(128). Accelerated Implementation of Intelligent Compaction Technology for Embankment Subgrade Soils, Aggregate Base and Asphalt Pavement Material.
